Visual methods for multivariate data - a journey beyond 3D

Session 1

Professor Di Cook
Monash University


  • Session 1: Introduction to tours
    • Getting started: package installs
    • What is a tour?
    • Interpreting what you see
    • Different types of tours
    • Interpreting what you see
    • Creating your own tour display
    • Saving your tour plot
  • Session 2: Combining tours with models
    • Model in the data space philosophy
    • Comparison to non-linear dimension reduction: liminal
    • Classification boundaries
    • Utilising random forest diagnostics
    • Dendrograms in the data space

Getting set up (1/2)

# Install from CRAN
# Getting help

tourr: Implements geodesic interpolation and basis generation functions that allow you to create new tour methods from R.

geozoo: Geometric objects defined in ‘geozoo’ can be simulated or displayed in the R package ‘tourr’.

spinifex: Implements manual control, where the contribution of a selected variable can be adjusted between -1 to 1, to examine the sensitivity of structure in the data to that variable.

liminal: A special purpose package to compare the views of the data provided by non-linear dimension with tSNE and a tour.

Getting set up (2/2)

My version of R, and installed packages is:

#> R version 4.2.1 (2022-06-23)
#> Platform: x86_64-apple-darwin17.0 (64-bit)
#> Running under: macOS Big Sur ... 10.16
#> Matrix products: default
#> BLAS:   /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRblas.0.dylib
#> LAPACK: /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRlapack.dylib
#> locale:
#> [1] en_AU.UTF-8/en_AU.UTF-8/en_AU.UTF-8/C/en_AU.UTF-8/en_AU.UTF-8
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#> other attached packages:
#>  [1] showtext_0.9-5  showtextdb_3.0  sysfonts_0.8.8  ggthemes_4.2.4  forcats_0.5.2   stringr_1.4.1   dplyr_1.0.10
#>  [8] purrr_0.3.5     readr_2.1.3     tidyr_1.2.1     tibble_3.1.8    ggplot2_3.4.0   tidyverse_1.3.2 knitr_1.40
#> loaded via a namespace (and not attached):
#>  [1] tidyselect_1.2.0    xfun_0.34           haven_2.5.1         gargle_1.2.1        colorspace_2.0-3
#>  [6] vctrs_0.5.1         generics_0.1.3      htmltools_0.5.3     yaml_2.3.6          utf8_1.2.2
#> [11] rlang_1.0.6         pillar_1.8.1        withr_2.5.0         glue_1.6.2          DBI_1.1.3
#> [16] dbplyr_2.2.1        modelr_0.1.9        readxl_1.4.1        lifecycle_1.0.3     munsell_0.5.0
#> [21] gtable_0.3.1        cellranger_1.1.0    rvest_1.0.3         evaluate_0.18       tzdb_0.3.0
#> [26] fastmap_1.1.0       curl_4.3.3          fansi_1.0.3         broom_1.0.0         backports_1.4.1
#> [31] scales_1.2.1        googlesheets4_1.0.1 jsonlite_1.8.3      fs_1.5.2            hms_1.1.2
#> [36] digest_0.6.30       stringi_1.7.8       grid_4.2.1          cli_3.4.1           tools_4.2.1
#> [41] magrittr_2.0.3      crayon_1.5.2        pkgconfig_2.0.3     ellipsis_0.3.2      xml2_1.3.3
#> [46] reprex_2.0.2        googledrive_2.0.0   lubridate_1.9.0     timechange_0.1.1    assertthat_0.2.1
#> [51] rmarkdown_2.18      httr_1.4.4          rstudioapi_0.14     R6_2.5.1            compiler_4.2.1

Load the penguins data

penguins <- penguins %>% filter(!
penguins_sub <- penguins[,c(1, 3:6)] %>%
  mutate(across(where(is.numeric),  ~ scale(.)[,1])) %>%
  rename(bl = bill_length_mm,
         bd = bill_depth_mm,
         fl = flipper_length_mm,
         bm = body_mass_g)
#>       species          bl              bd              fl              bm
#>  Adelie   :151   Min.   :-2.17   Min.   :-2.05   Min.   :-2.06   Min.   :-1.87
#>  Chinstrap: 68   1st Qu.:-0.86   1st Qu.:-0.79   1st Qu.:-0.78   1st Qu.:-0.81
#>  Gentoo   :123   Median : 0.10   Median : 0.08   Median :-0.28   Median :-0.19
#>                  Mean   : 0.00   Mean   : 0.00   Mean   : 0.00   Mean   : 0.00
#>                  3rd Qu.: 0.84   3rd Qu.: 0.78   3rd Qu.: 0.86   3rd Qu.: 0.68
#>                  Max.   : 2.87   Max.   : 2.20   Max.   : 2.14   Max.   : 2.62

See Allison Horst’s web site for more details.

About the penguins data

Adélie 1 Gentoo 2 Chinstrap 3

Simple scatterplot

       colour=species)) +
             size=3) +
    palette="Dark2") +

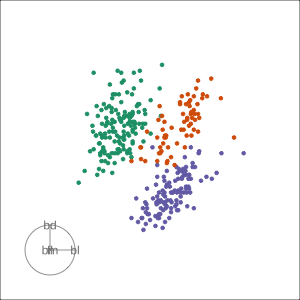

Our first tour

clrs <- brewer.pal(3, "Dark2")
col <- clrs[

What did you see?

  • clusters ✅
  • outliers ✅
  • linear dependence ✅
  • elliptical clusters with slightly different shapes ✅
  • separated elliptical clusters with slightly different shapes ✅

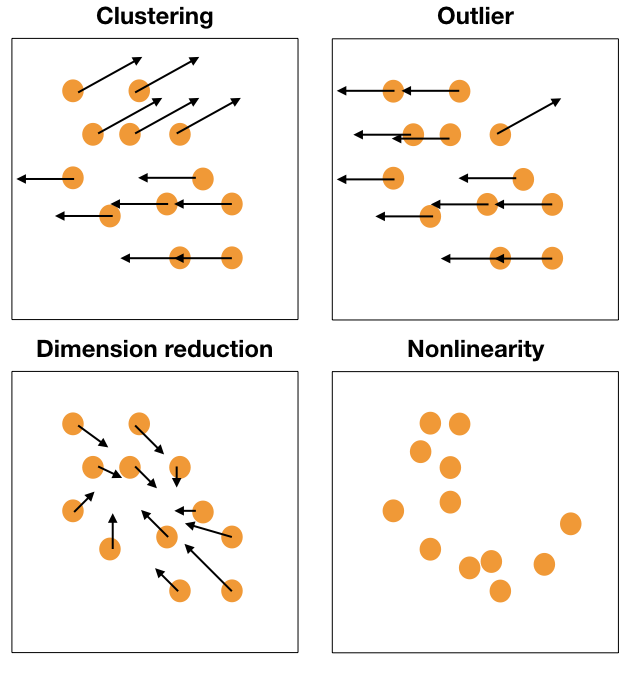

Movement patterns

Movement of points, generally in a grand tour, can provide additional information about structure in high-dimensions.

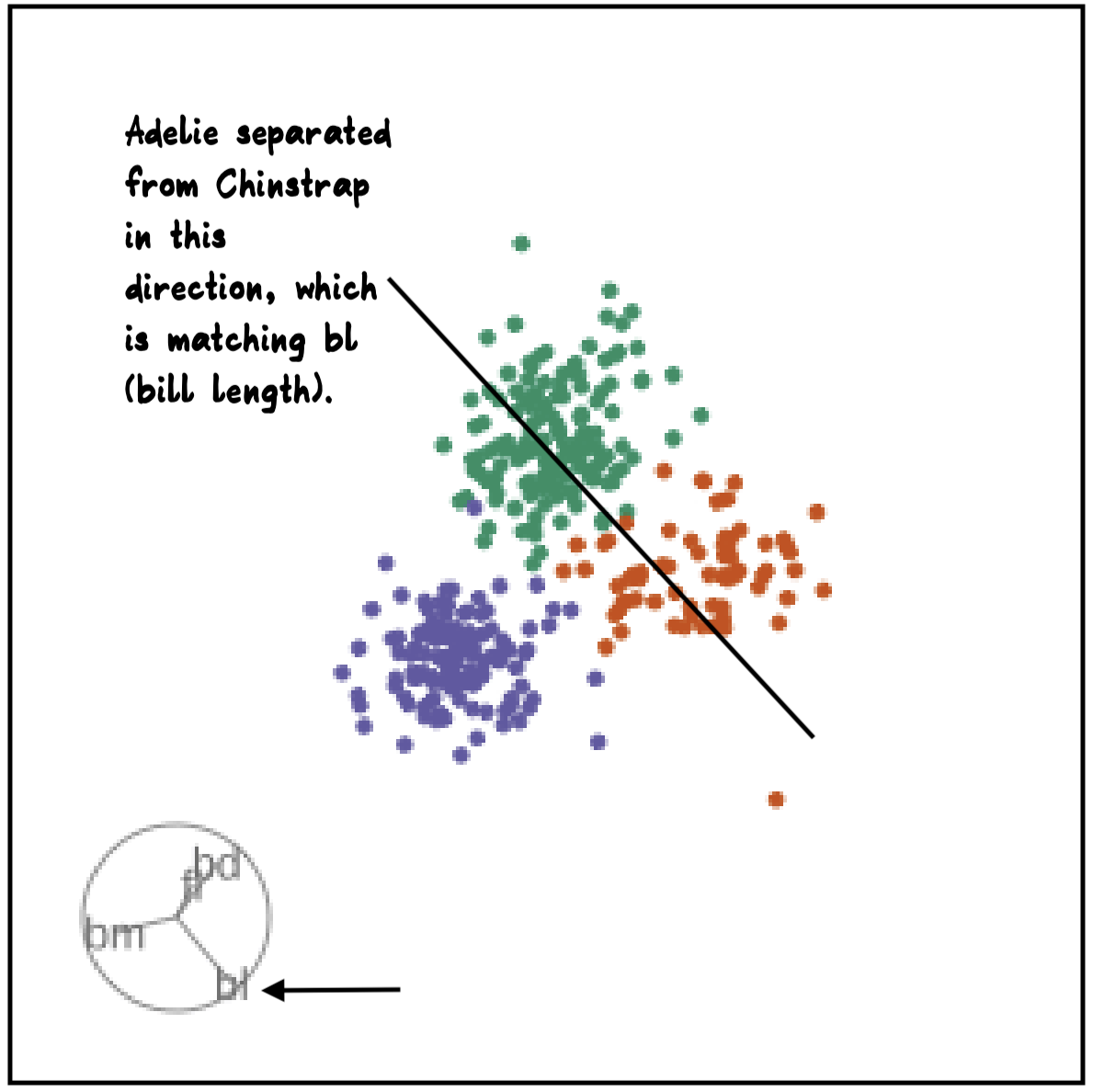

Reading axes - interpretation

Length and direction of axes relative to the pattern of interest

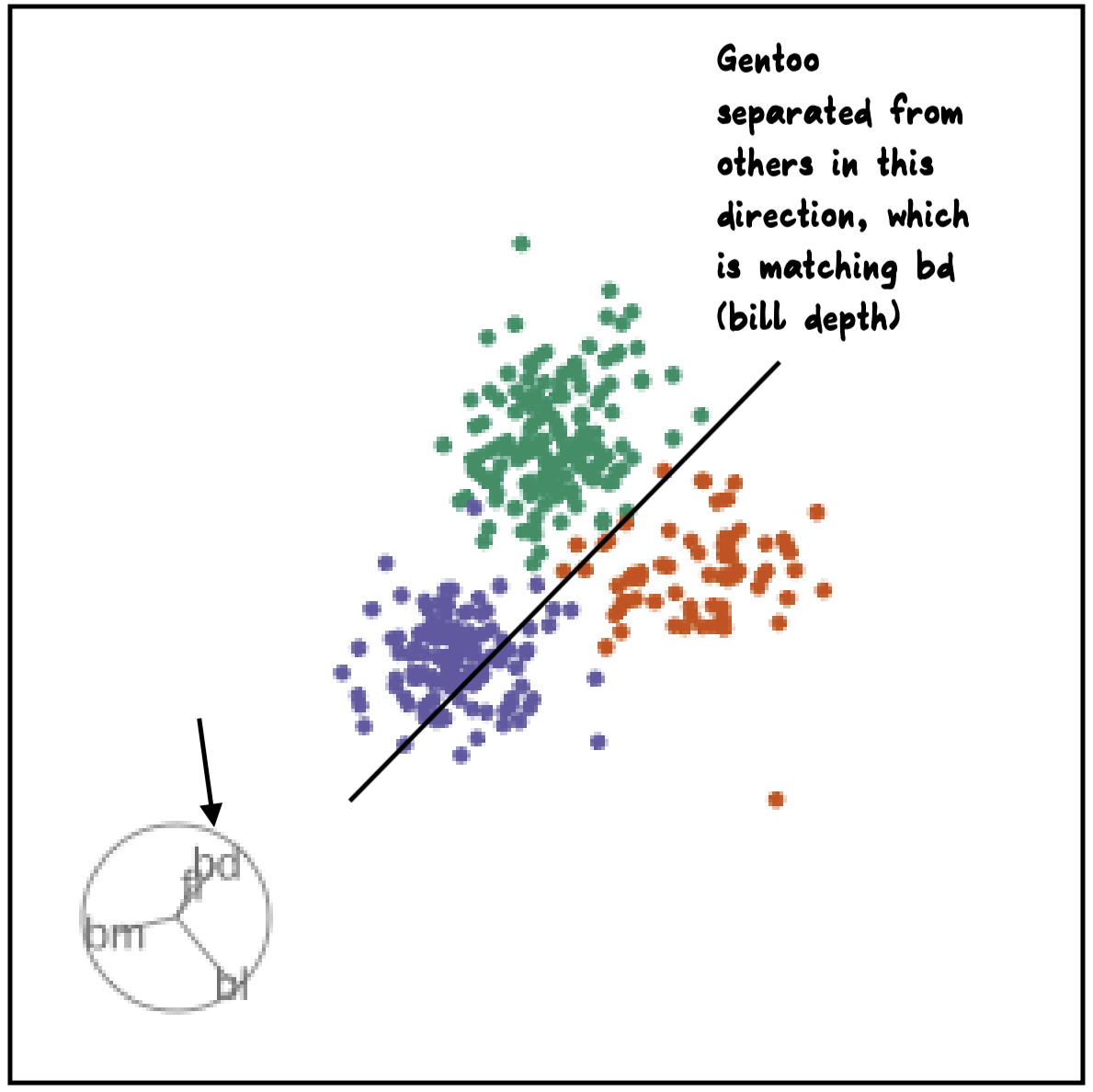

Reading axes - interpretation

Length and direction of axes relative to the pattern of interest

What is a tour?

A grand tour is by definition a movie of low-dimensional projections constructed in such a way that it comes arbitrarily close to showing all possible low-dimensional projections; in other words, a grand tour is a space-filling curve in the manifold of low-dimensional projections of high-dimensional data spaces.

\({\mathbf x}_i \in \mathcal{R}^p\), \(i^{th}\) data vector

\(F\) is a \(p\times d\) orthonormal basis, \(F'F=I_d\), where \(d\) is the projection dimension.

The projection of \({\mathbf x_i}\) onto \(F\) is \({\mathbf y}_i={\mathbf x}_iF\).

Tour is indexed by time, \(F(t)\), where \(t\in [a, z]\). Starting and target frame denoted as \(F_a = F(a), F_z=F(t)\).

The animation of the projected data is given by a path \({\mathbf y}_i(t)={\mathbf x}_iF(t)\).

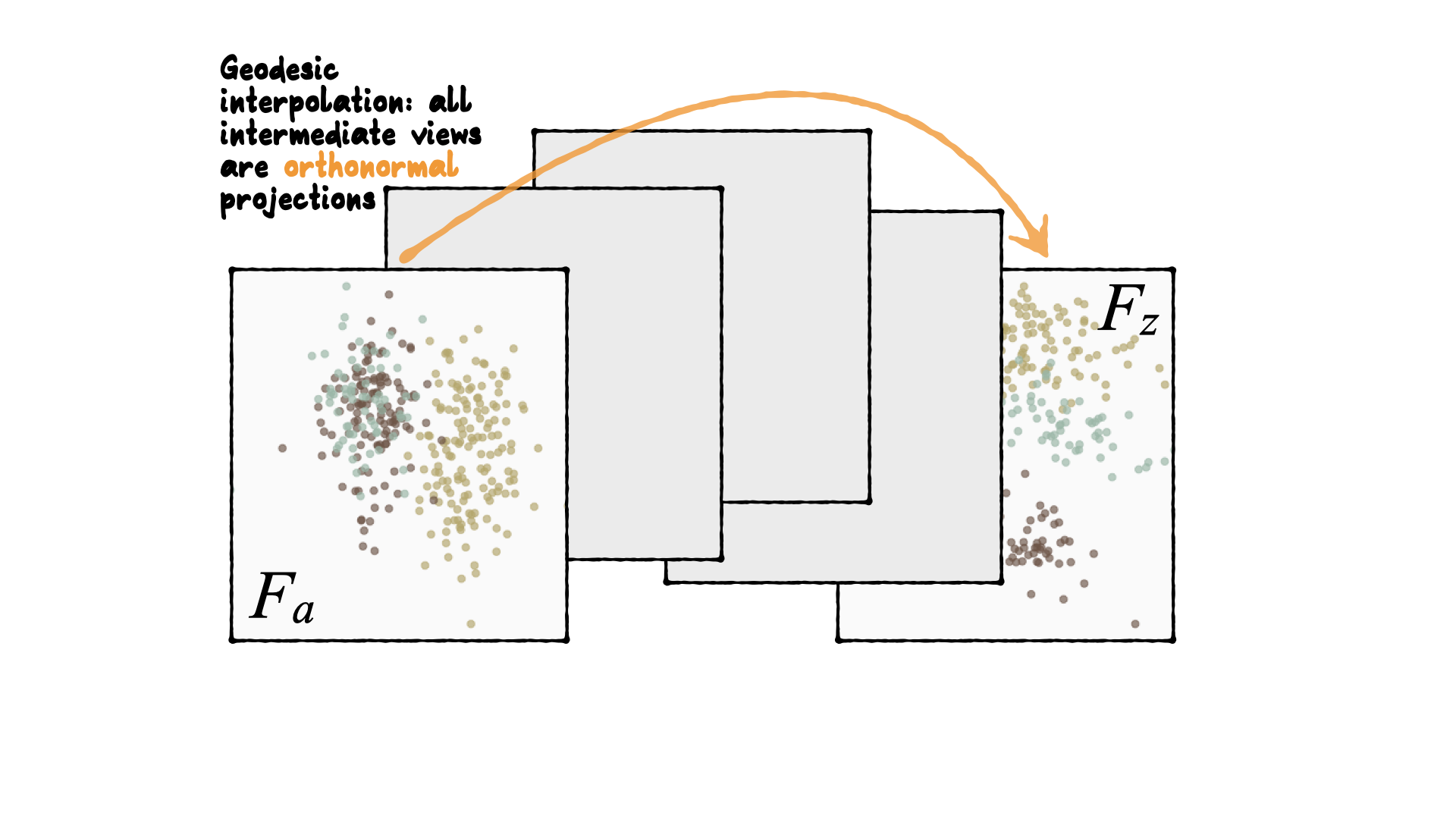

Geodesic interpolation between planes

Tour is indexed by time, \(F(t)\), where \(t\in [a, z]\). Starting and target frame denoted as \(F_a = F(a), F_z=F(t)\).

The animation of the projected data is given by a path \({\mathbf y}_i(t)={\mathbf x}_iF(t)\).

Understanding the projections

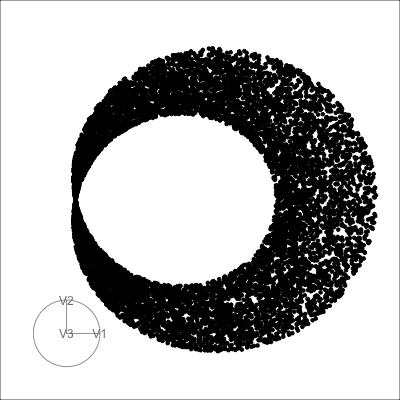

Let’s take a look at some common high-d shapes with a grand tour

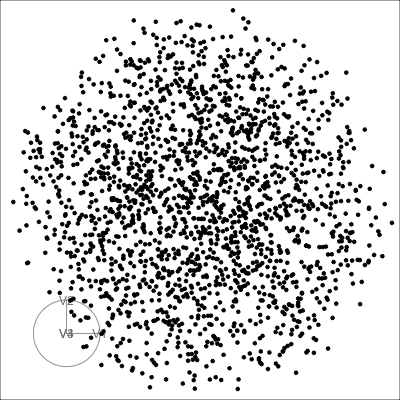

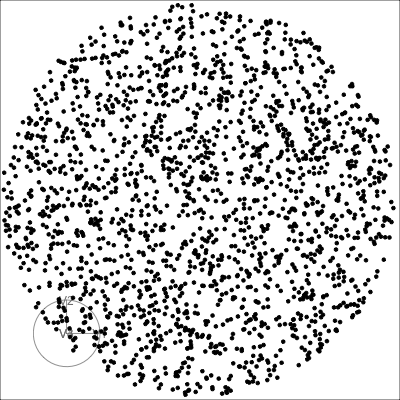

4D spheres

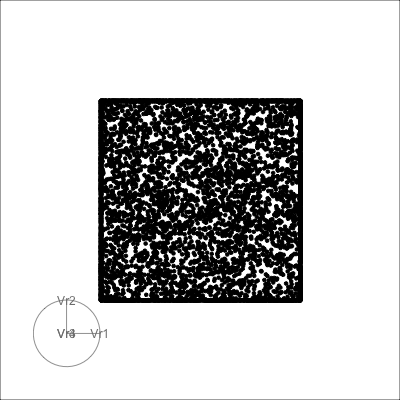

4D cubes

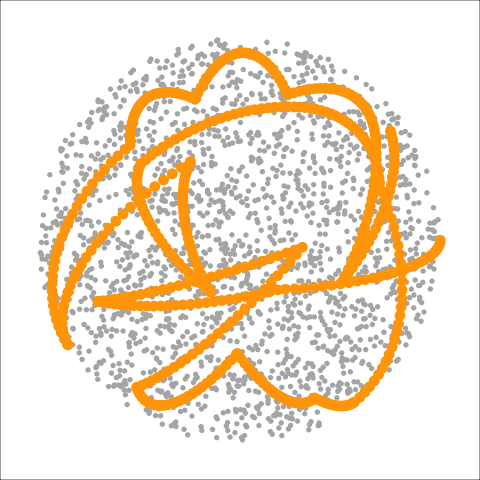

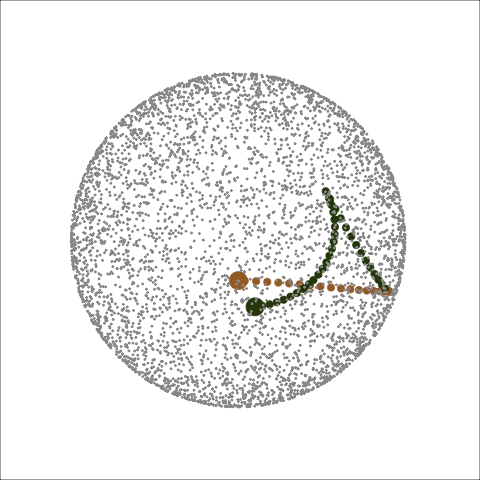

Path on the space of all projections

A grand tour is like a random walk (with interpolation) through the space of all possible projections: sphere for 1D, torus for 2D.1

Other tour types

  • guided: follows the optimisation path for a projection pursuit index.
  • little: interpolates between all variables.
  • local: rocks back and forth from a given projection, so shows all possible projections within a radius.
  • dependence: two independent 1D tours
  • frozen: fixes some variable coefficients, others vary freely.
  • manual/radial: control coefficient of one variable, to examine the sensitivity of structure this variable. See spinifex package.
  • slice: use a section instead of a projection.
  • sage: reverses the piling problem when projecting from high-dimensions.
  • pca: tour on \(k\) principal components, but show original variable axes. High-d biplots.

Guided tour

New target bases are chosen using a projection pursuit index function

\[\mathop{\text{maximize}}_{F} g(xF) ~~~\text{ subject to } F \text{ being orthonormal}\]

  • holes: This is an inverse Gaussian filter, which is optimised when there is not much data in the center of the projection, i.e. a “hole” or donut shape in 2D.
  • central mass: The opposite of holes, high density in the centre of the projection, and often “outliers” on the edges.
  • LDA/PDA: An index based on the linear discriminant dimension reduction (and penalised), optimised by projections where the named classes are most separated.


Might accidentally see best separation

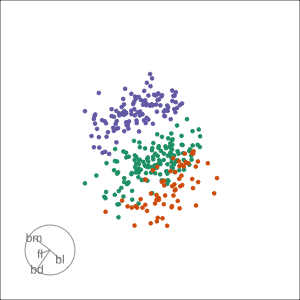

Guided, using LDA index

Moves to the best separation

Manual tour

  • start from best projection, given by projection pursuit
  • bd contribution controlled
  • if bd is removed from projection, Gentoo separation disappears
  • bd is important for distinguishing Gentoo

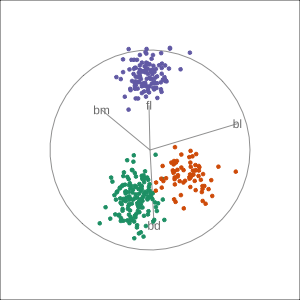

Manual tour

  • start from best projection, given by projection pursuit
  • bl contribution controlled
  • bl is important for distinguishing Adelie from Chinstrap

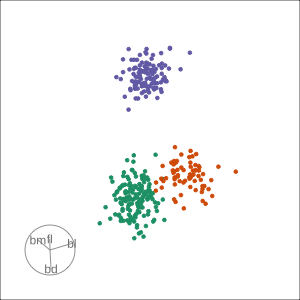

Local tour

Rocks from and to a given projection, in order to observe the neighbourhood

Slice tour

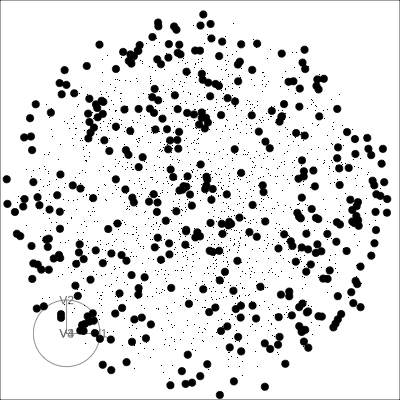

Solid 4D sphere

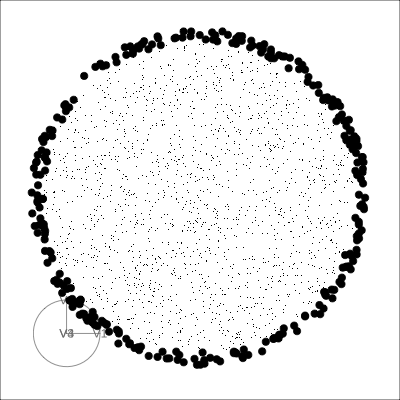

Hollow 4D sphere

Geometric shapes with slice tour

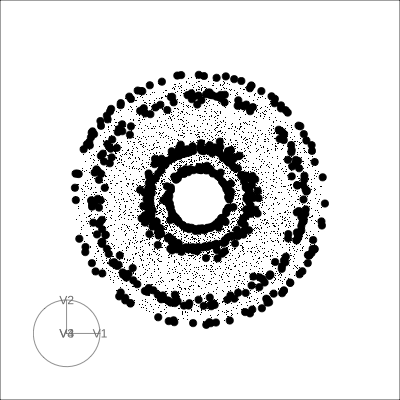

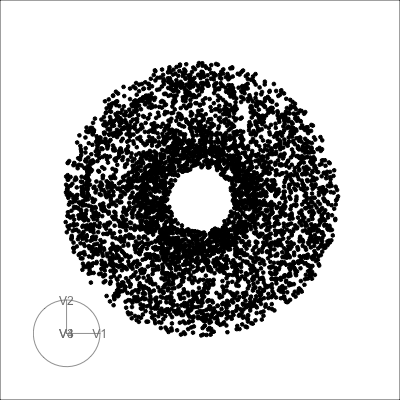

4D Torus

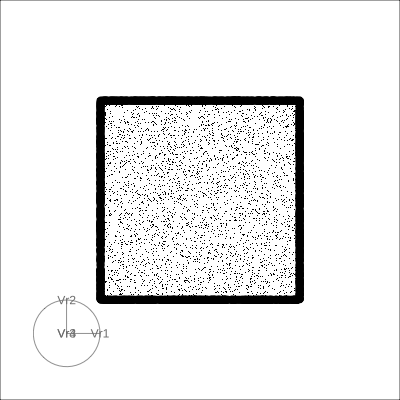

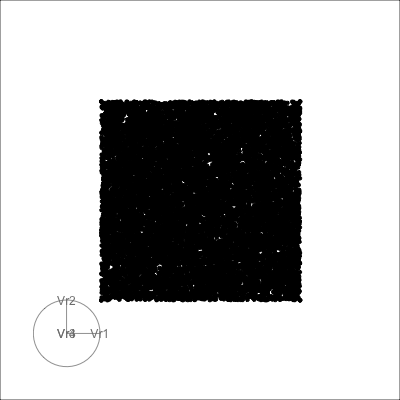

4D Hollow Cube

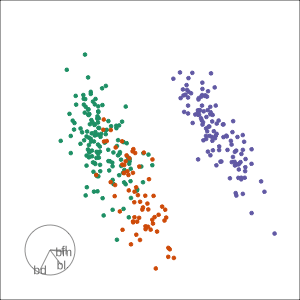

PCA tour

Compute PCA, reduce dimension, show original variable axes in the reduced space.

penguins_pca <- prcomp(penguins_sub[,2:5], center = FALSE)
penguins_coefs <- penguins_pca$rotation[, 1:3]
penguins_scores <- penguins_pca$x[, 1:3]
clrs <- brewer.pal(3, "Dark2")
col <- clrs[
animate_pca(penguins_scores, pc_coefs = penguins_coefs, col=col)

Projection dimension and displays

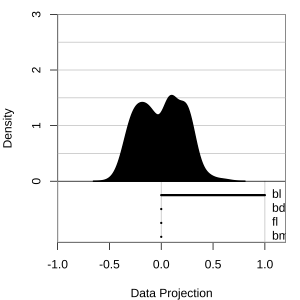

1D projections displayed as a density

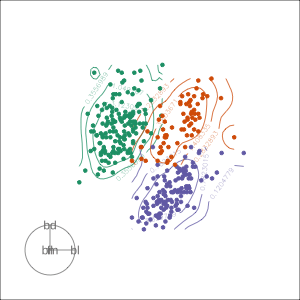

Density contours overlaid on a scatterplot

Tours are used for (1/2)

  • Classification:
    • to check assumptions of models
    • to examine separations between groups
    • determine variable importance
    • examine boundaries
    • random forest diagnostics vote matrix
  • Dimension reduction
    • go beyond 2 PCs
    • work with much higher dimensional data
    • check for not linear dependencies

Tours are used for (2/2)

  • Clustering:
    • examine shape of clusters
    • separation between clusters
    • compare cluster solution
    • view the dendrogram in data space
  • Compositional data:
    • shapes and clusters in a simplex

More on these in Session 2

Creating a new display

function (center = TRUE, axes = "center",
  half_range = NULL, col = "black", pch = 20,
  cex = 1, edges = NULL, edges.col = "black",
    labels <- NULL
    if (!areColors(col))
        col <- mapColors(col)
    init <- function(data) {
        half_range <<- compute_half_range(
          half_range, data, center)
        labels <<- abbreviate(colnames(data), 3)
    if (!is.null(edges)) {
        if (!is.matrix(edges) && ncol(edges) == 2) {
            stop("Edges matrix needs two columns,
              from and to, only.")
    render_frame <- function() {
        par(pty = "s", mar = rep(0.1, 4))
        blank_plot(xlim = c(-1, 1),
                   ylim = c(-1, 1))
    render_transition <- function() {
        rect(-1, -1, 1, 1, col = "#FFFFFFE6",
        border = NA)
    render_data <- function(data, proj,
      geodesic) {
        draw_tour_axes(proj, labels, limits = 1,
          axes, ...)
        x <- data %*% proj
        if (center)
            x <- center(x)
        x <- x/half_range
        points(x, col = col, pch = pch,
               cex = cex)
        if (!is.null(edges)) {
            segments(x[edges[, 1], 1],
              x[edges[, 1], 2],
              x[edges[, 2], 1],
              x[edges[, 2], 2],
                col = edges.col)
    list(init = init,
      render_frame = render_frame,
      render_transition = render_transition,
      render_data = render_data,
      render_target = nul)

To create a new display, a function containing these functions:

  • render_data: draw the data using base, input at least data, proj
  • init: initialise the drawing
  • render_frame: clears display to restart drawing
  • render_transition: allows for different drawing when a target is reached

Saving for publication

Method 1, using gifski and tourr::render_gif(). See lots of code chunks!

render_gif(penguins_sub[,2:5], grand_tour(),
           display_xy(col=col, axes="bottomleft"),
           "penguins2d.gif", apf=1/5,
           frames=100, width=300, height=300)

Method 2, using plotly (see create_plotly_animation.R):

  1. Generate each frame, index each frame, a big array
  2. Make one big ggplot, with all frames overplotted, and a non-used argument frame pointing to your index
  3. Pass to ggplotly
  4. Save to html using htmltools::save_html()

Use the spinifex function play_tour_path() to do this easily.


We can learn a little more about the data if have a tour in the toolbox. It can help us to understand

  • dependencies between multiple variables
  • examine shapes, of clusters
  • detect outliers

If you want to read more


Slides produced using quarto.

Slides available from

Viewable at
